Bể ổn nhiệt IKA IC control eco 18 c
Còn hàng
- Mô tả sản phẩm
- Vui Lòng Liên Hệ : 0967 911 733 để được hỗ trợ nhanh nhất
- Vui Lòng Liên Hệ : 0967 911 733 để được hỗ trợ nhanh nhất

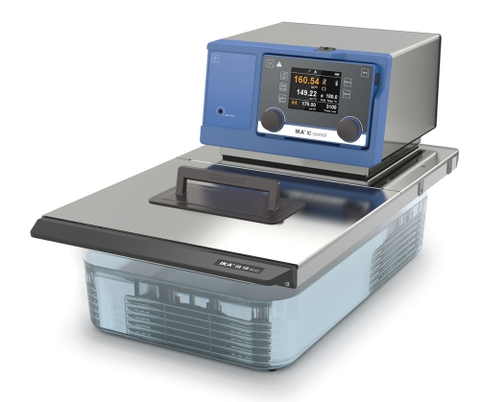

Bể ổn nhiệt IKA IC control eco 18 c
Model: IC control eco 18 c
IKA facilitates the configuration of your temperature control system by offering “ready to go“ packages including all required accessories.
Package includes:
+ IC control
+ IB eco 18 Plastic bath, 18 liter
+ PT 100.30 Temperature sensor
+ CL.IC Large cover
+ BS.IC Small bridge
|
Appliance type |
immersion thermostat |
|
Classification according to DIN 12876 |
III |
|
Identification according to DIN 12876 |
FL |
|
Heat output |
2500 W |
|
Operating temperature min. |
-20 °C |
|
Operating temperature max. (with external heating) |
250 °C |
|
Working temperature min. |
room temp. +10K @1000rpm °C |
|
Working temperature max. |
250 °C |
|
Temperature display |
yes |
|
Temperature control |
PT 100 |
|
Working temperature sensor |
PT 100 |
|
Safety temperature sensor |
PT1000 |
|
Working temperature display |
TFT |
|
Safety temperature display |
TFT |
|
Temperature stability DIN 12876 |
0.01 ±K |
|
Connection for ext. temperature sensor |
PT 100 |
|
Display resolution |
0.01 ±°C |
|
Display for operation with ext. sensor |
yes |
|
Heat control accuracy |
0.1 ±K |
|
Warning function optical |
yes |
|
Warning function acoustic |
yes |
|
Warning function excess temperature |
yes |
|
Warning function insufficient temperature |
no |
|
Adjustable safety circuit min. |
0 °C |
|
Adjustable safety circuit max. |
260 °C |
|
Sub-level protection |
yes |
|
Over-level protection |
yes |
|
Pump type |
Pressure- / suction pump |
|
Pump capacity adjustable |
yes |
|
Pump pressure max. (0 liters discharge flow) |
0.7 bar |
|
Pressure pump (suction side) (0 liter flow) |
0.4 bar |
|
Pump pressure max. (0 bar back pressure) |
26 l/min |
|
Pump connection |
M16x1 |
|
Cooling coil connection |
NW 8 |
|
Bath depth min. |
150 mm |
|
Calibration option |
yes |
|
Appliance fastener |
Bridge |
|
Range of universal clamp min. |
260 mm |
|
Range of universal clamp max. |
360 mm |
|
Technical data complies with the standard |
DIN 12876 |
|
Permissible ON time |
100 % |
|
Dimensions (W x H x D) |
285 x 313 x 291 mm |
|
Weight |
8.8 kg |
|
Permissible ambient temperature |
5 - 40 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
RS 232 interface |
yes |
|
USB interface |
yes |
|
Voltage |
230 / 100 - 115 V |
|
Frequency |
50/60 Hz |
|
Power input |
2650 W |
